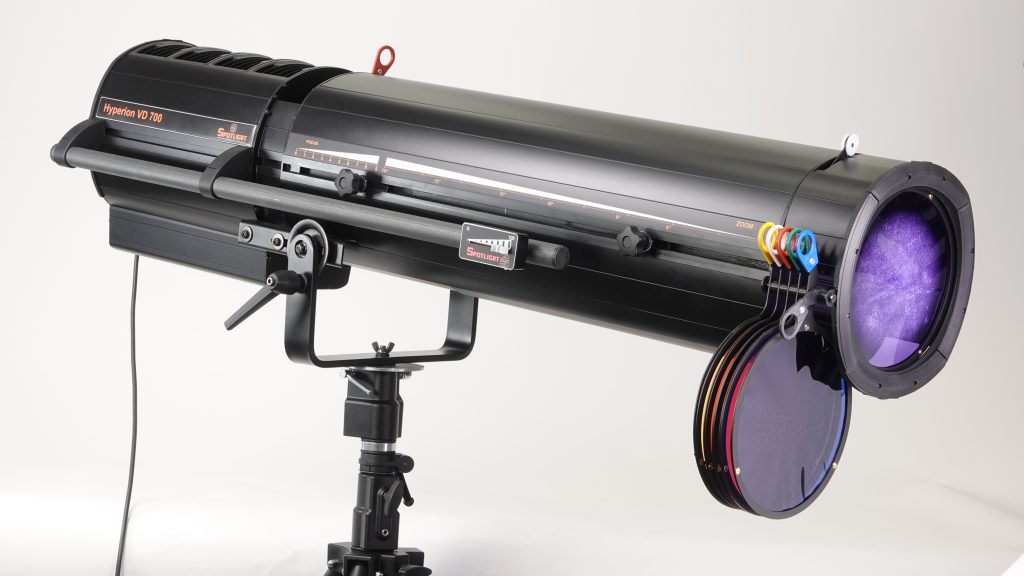

Followspot LED 700W

Hyperion Series for Theatres and TV Studios

Constant color temperature during dimming

Ultra-soft regulation of intensity through pre-set dimmer curves

Adjustable forced ventilation

Cooling system with high performance heat pipes

Adjustable fork for correct headlight balancing

LED temperature control and management system for maintaining the optimal operating ranges

Remote control of fixture functions (DMX-RDM)

All you need to know...

The fixture is available with only one LED engine and complies with the USITT DMX 512A and ANSI RDM E 1.20 protocol standard

White

FS HY LED 700 CW

Proiettori con sistema di regolazione dell’ottica e della messa a fuoco analogo a quello dei sagomatori, ma che si distinguono da questi perché montati su sistemi di puntamento da terra (detti cavalletti) che permettono una movimentazione fluida e bilanciata del faro.

A differenza dei Sagomatori, i Seguipersona sono progettati per favorire il controllo manuale e diretto del puntamento da parte di un operatore luci.

Sono impiegati per l’illuminazione d’accento da lunga distanza, quando è necessario il controllo manuale da parte di un operatore per seguire i movimenti di un attore sul palco quando le sue posizioni non sono note a priori.

Spesso vengono utilizzati nei grandi concerti ed eventi live o sul fondo della galleria dei teatri d’opera per tenere sempre in luce i protagonisti.

Previous slide
Next slide

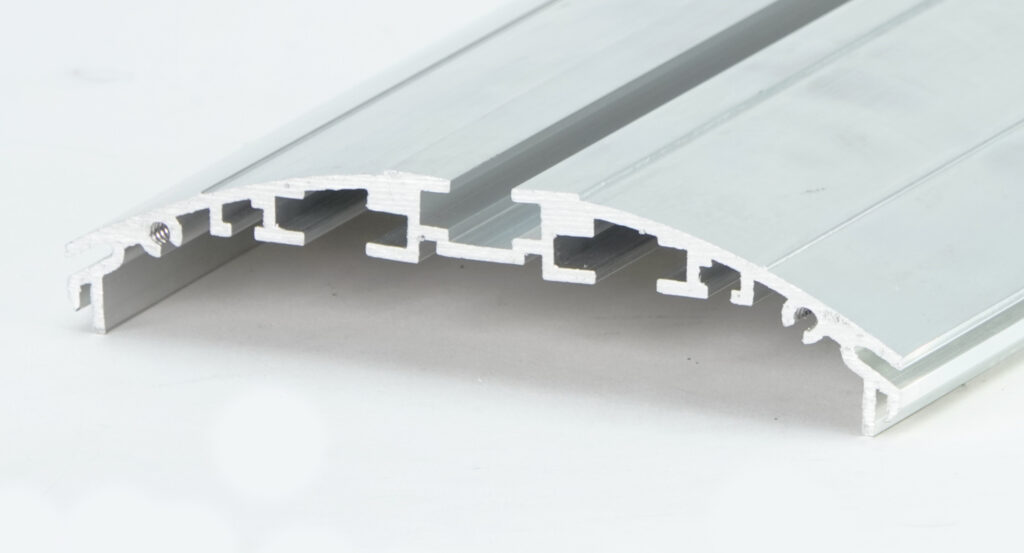

The housing is IP20 rating, made by rugged, highly resistant extruded aluminum, free of defects such as burrs, pits and malformations, in combination with lightweight fiber glass enforced hammer proof techno-polymer parts.

The housing doesn’t present any sharp edge and be made with a durable yet lightweight and rustproof construction with excellent mechanical strength for longer life also in presence of high humidity.

Finish is shockproof with anti-scratch epoxy raisin powder coating non-reflective black finish with electrostatic application.

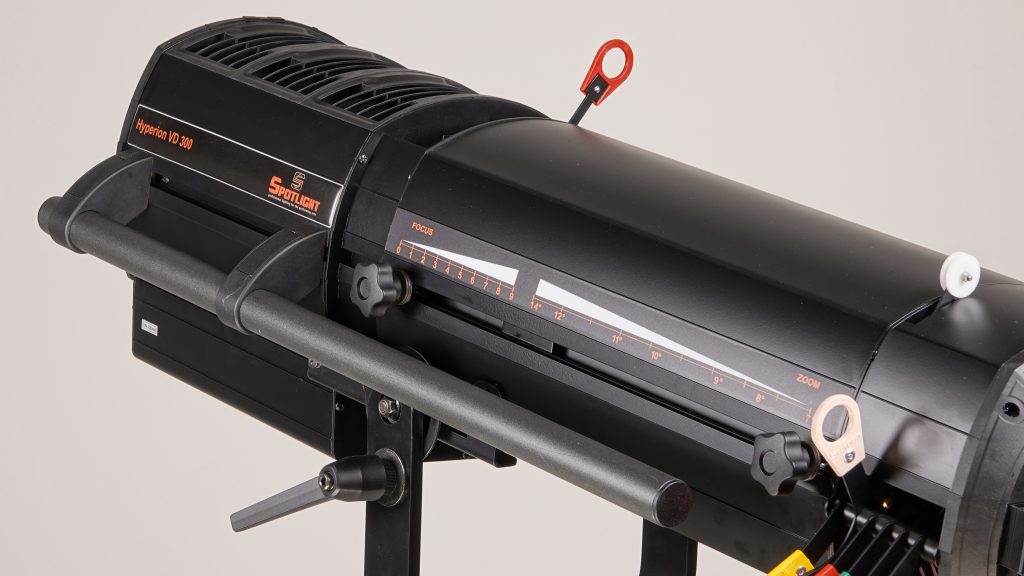

The fixture has a rugged rustproof aluminum yoke, reversible and adjustable in height, with fast balancing technology, mounted into extruded aluminum sliding rail for any positioning of the yoke.

The fixture can easily stand on the floor without other accessories thanks to a quick adjustable and extremely flexible yoke positioning.

The fixture has a display equipped with a 4 buttons for local control.

The fixture utilizes an advanced thermal management system to maintain LED life to an average of 70% intensity after 54,000 hours of use.

The thermal management system is based on the combination of two cooling systems:

– a passive natural heat convection and

– a super silent active cooling system, also controllable via lighting desk

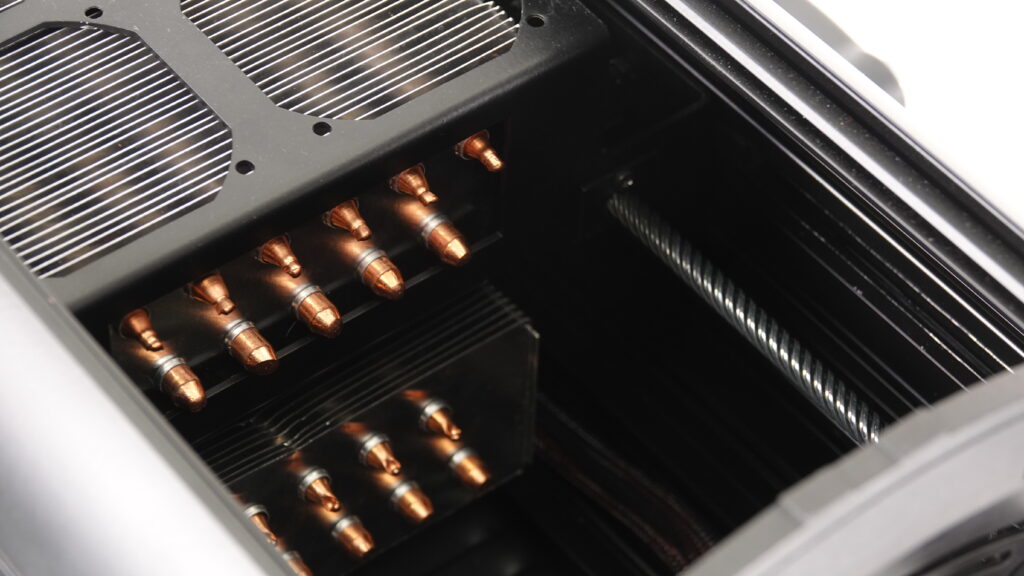

The passive natural heat convection is guaranteed by excellent LED cooling due to very large and effective double labyrinth dissipation, which at the same time avoid any light spillage over the entire top and the back part of the fixture.

The active cooling system is guaranteed by a forced dissipation of heat using a fan, allowing to intervene on the speed and therefore on the noise of the fans.

The thermal management system includes multiple temperature sensors to avoid an early LED deterioration. In addition a fan speed software allows to override DMX fan speed setting or the current to the LED array in order to prevent heat damages of the fixture that brings lifespan at risk.

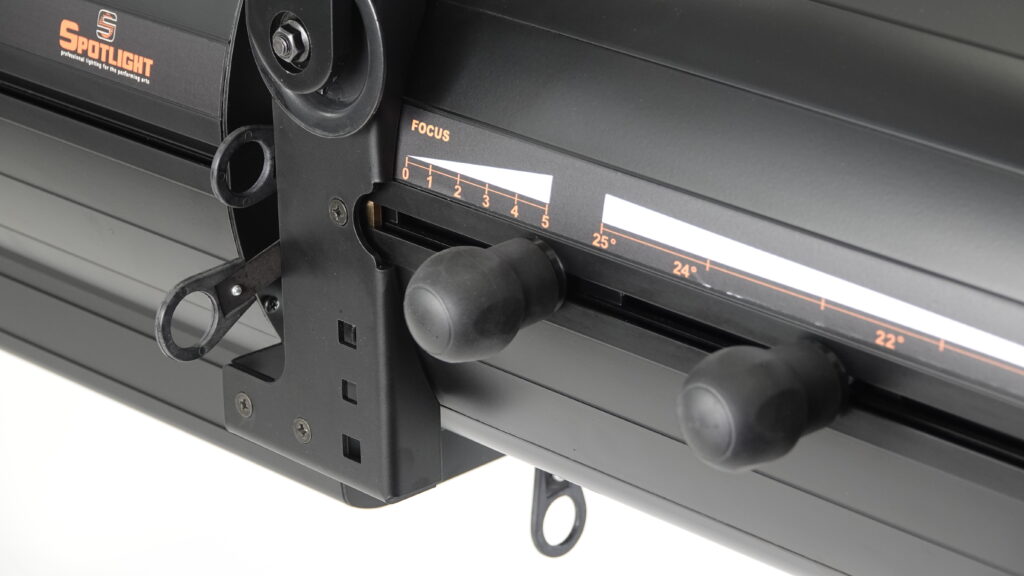

The focusing is made by very accurate soft fine-tuning endless screw zoom mechanism placed inside the housing in order to guarantee that the size and balance of the fixture remain stable in any position, even with barndoors and filter frames in front.

The projection has a very precise variable beam angle fine adjustment without jerkins.

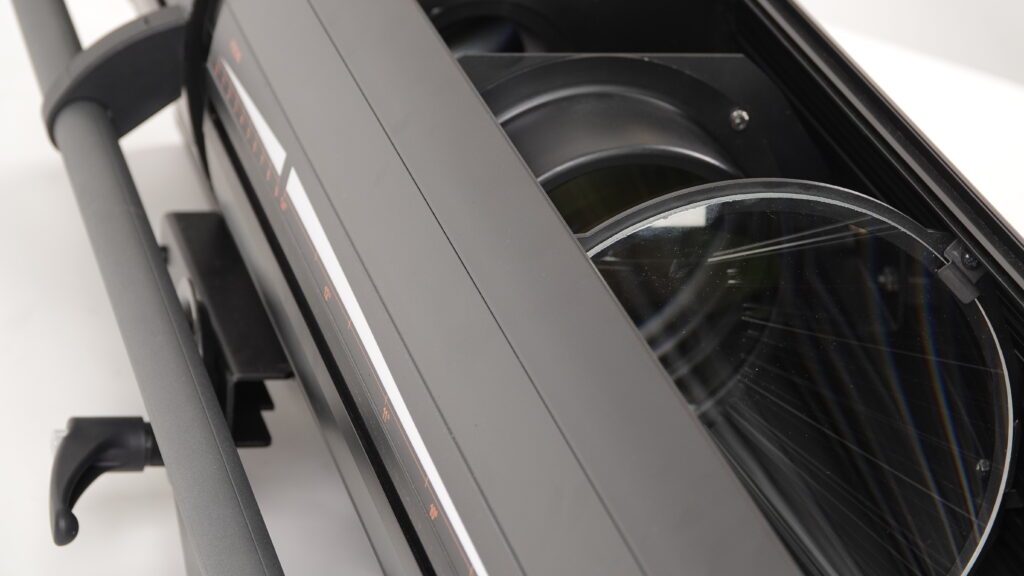

The optical system guarantees a powerful uniform light output without pixilation thanks to a high-quality glass lenses with AR Anti Reflex coating and PMMA lenses.

The lense is mounted onto extended holders to allow the best ventilation.

Power supply:

The fixture has the PSU driver and dimmer electronic integrated on board.

The fixture is equipped with an internal auto sensing power supply with an input range from 100V to 240V – 50/60 Hz protect by on board fuse

The efficiency should be PF>0.94/230VAC PF>0.98/115VAC at full load

Power connector:

– lockable Neutrik® PowerCON True1 TOP main input connector

– lockable Neutrik® PowerCON True1 TOP main through connector

The fixture supports power in and thru operation up to 16A

Control (DMX signal):

– international standard with XLR 5-pole in/out connectors

The fixtures can be linked together with standard DMX cable

The fixture is able to resolve or minimize the main disturbances.

Silent mode – in order to work properly, a lighthouse needs a cooling system, which can be passive (radiator type) or active (presence of fans that “blow” the hot air away to make the source work within a range temperature considered ideal). The silent mode function allows you to intervene on the speed and therefore on the noise of these fans: an algorithm detects the internal temperatures from the thermostat and controls the current to ensure continuous operation of the light, preventing damage or shutdowns. In some situations, for example in the lighting park above the symphony orchestra or in some art museums, “absolute silence” is required, therefore it is necessary to be able to deactivate the operation of the fans.

Flicker free – when filming a show with cameras or even simply with the smartphone video camera it is possible that annoying oscillations (flickering) appear on the screen due to the frequency conflict between the emission of the LED light and the scanning of the brush of the receiving camera. This conflict must be resolved by acting on the camera recording parameters or on the LED source parameters.fixture

The fixture offers the possibility to choose one of the following dimming curves, each of them optimized for smooth dimming at low intensities and over longer timed fades: linear, halo, quadratic, gamma 2.6, gamma 2.8 and curve s.

The fixture features control of intensity in 8bit or in 16bit mode (for high-resolution dimming) without any exhibiting flicker, stepping or jumping.

The fixture guarantees a very smooth dimming of intensity from 0% to 100% and vice-versa.

A special algorithm ensures that the color temperature remains constant during dimming.

PGB HY 700: gobo-holder type B

BS: tripod stand (low), DIN, adjustable witj lazy leg

RF: set of 3 wheels with brake

Flycase

The fixture is provided with warranty of:

– 3 years for defect resulting from faulty materials or workmanship

– 5 years on the availability of its spare parts and components
