Constant color temperature during dimming
Ultra-soft regulation of intensity through pre-set dimmer curves
Adjustable forced ventilation
Cooling system with high performance heat pipes
Adjustable fork for correct headlight balancing
LED temperature control and management system for maintaining the optimal operating ranges
Remote control of fixture functions (DMX-RDM)
The fixture is available with different LED engines and complies with the USITT DMX 512A and ANSI RDM E 1.20 protocol standard
PR HY LED 100 CW
PR HY LED 100 NW
PR HY LED 100 WW

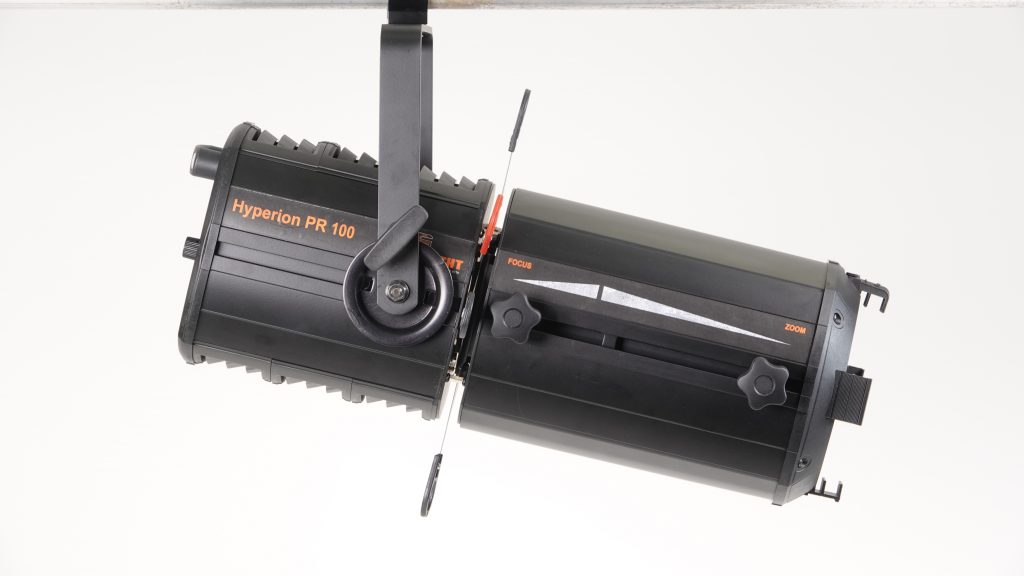

Projectors equipped with two lenses (focus lens and zoom lens) both adjustable which allow to obtain projections with precise outlines (in focus) and adjustable width (zoom).
They are equipped with an adjustable fork and shaping slats, which allow you to cut the light beam and obtain not only circular projections.
They are used for accent and precision lighting, to shape geometric shapes and figures such as paintings or architectural elements and for the projection of logos and images, called gobos.
The housing is IP20 rating, made by rugged, highly resistant extruded aluminum, free of defects such as burrs, pits and malformations, in combination with lightweight fiber glass enforced hammer proof techno-polymer parts.
The housing doesn’t present any sharp edge and be made with a durable yet lightweight and rustproof construction with excellent mechanical strength for longer life also in presence of high humidity.
Finish is shockproof with anti-scratch epoxy raisin powder coating non-reflective black finish with electrostatic application.
The fixture has a rugged rustproof aluminum yoke, reversible and adjustable in height, with fast balancing technology, mounted into extruded aluminum sliding rail for any positioning of the yoke.
The fixture can easily stand on the floor without other accessories thanks to a quick adjustable and extremely flexible yoke positioning.
The fixture has a display equipped with a 4 buttons for local control.
The fixture utilizes an advanced thermal management system to maintain LED life to an average of 70% intensity after 54,000 hours of use.
The thermal management system is based on the combination of two cooling systems:
– a passive natural heat convection and
– a super silent active cooling system, also controllable via lighting desk
The passive natural heat convection is guaranteed by excellent LED cooling due to very large and effective double labyrinth dissipation, which at the same time avoid any light spillage over the entire top and the back part of the fixture.
The active cooling system is guaranteed by a forced dissipation of heat using a fan, allowing to intervene on the speed and therefore on the noise of the fans.
The thermal management system includes multiple temperature sensors to avoid an early LED deterioration. In addition a fan speed software allows to override DMX fan speed setting or the current to the LED array in order to prevent heat damages of the fixture that brings lifespan at risk.
The focusing is made by very accurate soft fine-tuning endless screw zoom mechanism placed inside the housing in order to guarantee that the size and balance of the fixture remain stable in any position, even with barndoors and filter frames in front.
The projection has a very precise variable beam angle fine adjustment without jerkins.
The optical system guarantees a powerful uniform light output without pixilation thanks to a high-quality borosilicate glass lense.
The lense is mounted onto extended holders to allow the best ventilation.
The fixture has the PSU driver and dimmer electronic integrated on board.
The fixture is equipped with an internal auto sensing power supply with an input range from 100V to 240V – 50/60 Hz protect by on board fuse
The efficiency should be PF>0.94/230VAC PF>0.98/115VAC at full load
– lockable Neutrik® PowerCON True1 TOP main input connector
– lockable Neutrik® PowerCON True1 TOP main through connector
The fixture supports power in and thru operation up to 16A
Control (DMX signal):
– international standard with XLR 5-pole in/out connectors
The fixtures can be linked together with standard DMX cable
The fixture is able to emulate the performance of a halogen lamp.
In the continuous search to satisfy “nostalgic” light designers of halogen light and to get closer to the natural perception that the human eye has of an object illuminated with LED, it is not enough that the static light simulates halogen light, but that it is also dynamic regulation. For a LED luminaire to behave like a halogen headlight, there are three aspects to consider:
– the dimmer curve which represents the inertia with which the light is returned by the source according to the signal it receives. It can be set up as linear or quadratic with “slow release” curvature.
– the delay, i.e. the “delay” with which a filament begins to emit light after it receives the electrical stimulus. Shift the curve by milliseconds, adjustable.
– the amber shift effect, not available.
The fixture is able to resolve or minimize the main disturbances.
Silent mode – in order to work properly, a lighthouse needs a cooling system, which can be passive (radiator type) or active (presence of fans that “blow” the hot air away to make the source work within a range temperature considered ideal). The silent mode function allows you to intervene on the speed and therefore on the noise of these fans: an algorithm detects the internal temperatures from the thermostat and controls the current to ensure continuous operation of the light, preventing damage or shutdowns. In some situations, for example in the lighting park above the symphony orchestra or in some art museums, “absolute silence” is required, therefore it is necessary to be able to deactivate the operation of the fans.
Flicker free – when filming a show with cameras or even simply with the smartphone video camera it is possible that annoying oscillations (flickering) appear on the screen due to the frequency conflict between the emission of the LED light and the scanning of the brush of the receiving camera. This conflict must be resolved by acting on the camera recording parameters or on the LED source parameters.fixture
Si tratta di una modalità di funzionamento per eliminare i disturbi di flickering, causati dal pilotaggio in PWM del LED, e i disturbi acustici, generati dai componenti elettronici.
Questa modalità è specificatamente indicata per applicazioni in studi TV o in camere acustiche dove è richiesta la massima silenziosità degli apparecchi l’assenza di flicker.
It is possible to choose from the following color temperatures:
other color temperatures on request between 2’700K and 6’500K
The fixture offers the possibility to choose one of the following dimming curves, each of them optimized for smooth dimming at low intensities and over longer timed fades: linear, halo, quadratic, gamma 2.6, gamma 2.8 and curve s.
The fixture features control of intensity in 8bit or in 16bit mode (for high-resolution dimming) without any exhibiting flicker, stepping or jumping.
The fixture guarantees a very smooth dimming of intensity from 0% to 100% and vice-versa.
A special algorithm ensures that the color temperature remains constant during dimming.
TC HY 100: filter frame
DIA 05: diaframma iris
DIA 05 BO: diaframma iris con blackout
PGB R 100: porta gobos tipo B
PGM R 100: porta gobos tipo M
The fixture is provided with warranty of:
– 3 years for defect resulting from faulty materials or workmanship
– 5 years on the availability of its spare parts and components
