Sorgente

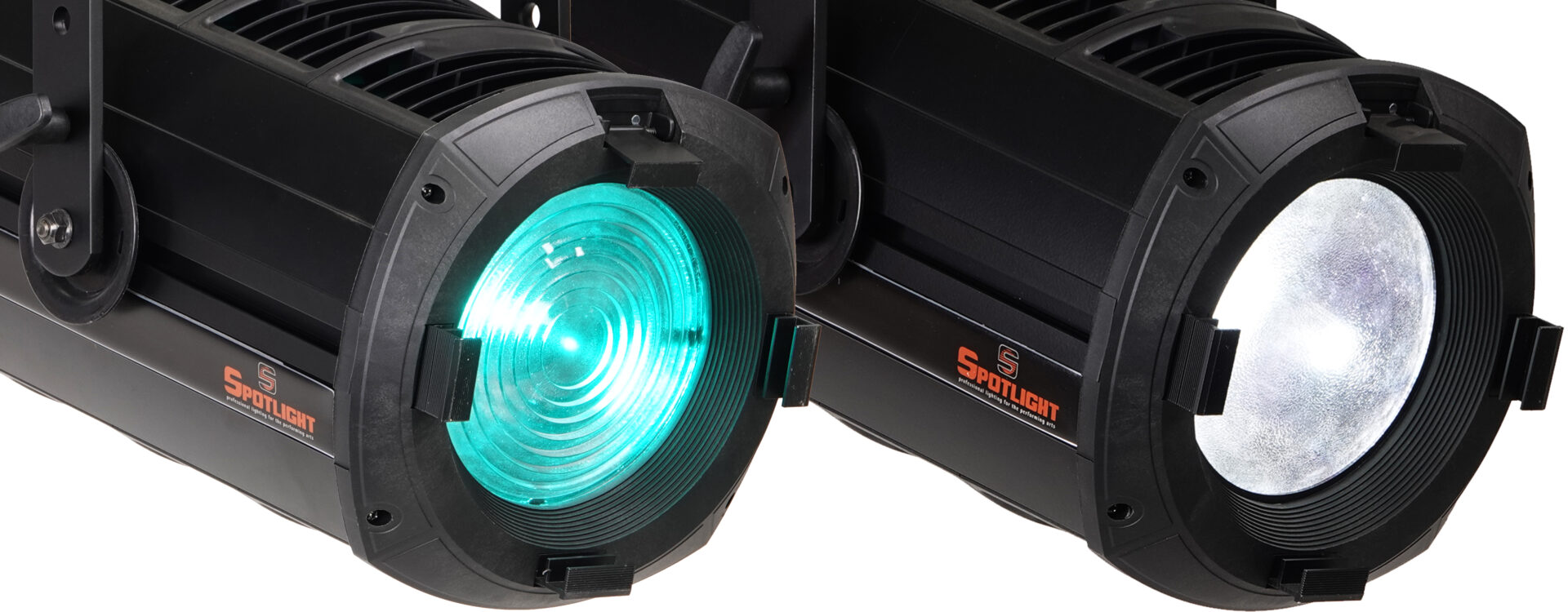

Fresnel LED 700W Serie Hyperion

Proiettori dotati di una lente di Fresnel, riconoscibile dalla particolare superficie a “scalini” concentrici che permette una diffusione ampia ed uniforme del fascio di luce rendendo molto morbido il passaggio tra la zona in luce e quella in ombra.

Questa tipologia di faro, dotato di forcella orientabile e sistema di regolazione dell’ottica, viene impiegata per ottenere un’illuminazione direzionale diffusa ed uniforme, dai contorni “sfuocati” particolarmente morbidi.

I proiettori, sia nella versione convenzionale che in quella a LED, montano la sorgente su una slitta che viene avvicinata o allontanata dalla lente per allargare o restringere il fascio luminoso. La slitta si muove tramite un sistema a vite senza fine.

Precedente
Successivo

The Hyperion Series raises quality and power to an ultimate level of excellence thanks to the advanced LED technology, the rich control software, the
various personalities, and the use of the 4, 6 or 8 colours sources for a much larger colour gamut and higher colour rendering.

DIMMING AND TUNGSTEN EMULATION FOR INCREDIBLY REALISTIC EFFECTS

To achieve maximum realism in emulating tungsten sources, the white adjustment of the tungsten curve offers the traditional orange toning effect while decreasing intensity, also known as Red /AmberShift. Option 2 curve includes the possibility of setting the delay in turning on and off typical of halogen lamps. With this appealing functions of the Hyperion Series, the white light will automatically shift to warmer tones as you dim down to zero, and you can even adjust the fade delay, so you can emulate the most common tungsten lamps as well as the bigger ones.

4, 6 OR 8 COLOURS

The 4, 6 or 8 colours sources technology opens up new possibilities and produces better colours than ever before.

Especially, the new generation of 6 colours LED engine generates rich saturates and subtle, theatrical pastels colours combining diodes that emit the usual primary red, green and blue colours with further sources amber, cyan and lime. But thanks to the 8 colours LED engine maximum performance is truly achieved: you’ll have two additional white (CW and WW) that guarantee a continuous colour spectrum CCT.

This combination allows the luminaire not only to emit a wider spectrum and with a more uniform curve, capable of producing white light with a colour temperature ranging from 1’500K to 20’000K, but gives also a minimum CRI of 94 and a maximum of CRI 97: an exceptional result, worthy only of the top of the range by Spotlight.

BOOSTER

This funciotn allows to increase the light output of a single colour (+20%) when not all the channels are at full at the same time.

PERFECT ALSO FOR TV STUDIOS

Pantograph / Pole operated yoke (PO System)

4 OR 8 LEAF BARNDOORS

standard rotating / individual rotating leafs / 8 leafs

CARATTERISTICHE FUNZIONALI

  • Ventilazione forzata regolabile
  • Sistema di raffreddamento con heat pipe di elevate prestazioni
  • Tettuccio porta filtri/gelatine
  • Forcella con sistema di bloccaggio a frizione
  • Forcella regolabile per un corretto bilanciamento del faro
  • A richiesta in versione PO, con comando a palo 3-vie per brandeggio orizzontale, verticale e regolazione del fuoco
  • A richiesta in versione ARC, con motorizzazione DMX 3-vie per brandeggio orizzontale, verticale e regolazione del fuoco
  •

CARATTERISTICHE FUNZIONALI

  • Sistema di controllo e gestione della temperatura del LED per il mantenimento nei range ottimali di funzionamento
  • Temperatura di colore costante durante la dimmerazione
  • Modalità di funzionamento in silent mode
  • Regolazione intensità da zero a full attraverso curve dimmer pre-impostate
  • Flicker free con frequenza PWM regolabile per utilizzo in presenza di telecamere
  • Funzione strobo regolabile in frequenza
  • Controllo da remoto delle funzioni del faro (DMX-RDM)
  • Modalità di controllo a 8/16 bit su tutti i canali
  • Sistema di raffreddamento con heat pipe di elevate prestazioni

Download

Catalogues

Datasheets

Videos

User Manuals

DWG 2D

DWG 3D

LDT

© Copyright 2020 SPOTLIGHT sc – Via Sardegna, 3 20098 San Giuliano Milanese MI – P.IVA IT03859900130

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 700W, 11°-53°, CRI 95, DMX
    FN LED 700 CW DMX
    FN LED 700 WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 700W, 11°-53°, DMX
    FN HY LED 700 TW DMX [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL
    +
    Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 700W, 11°-53°, DMX
    FN HY LED 700 8C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC HY 700: telaio colori
    PL 4 HY 700: paraluce rotante a 4 alette
    *TBD*: comando a palo a 3 vie (pan/tilt/fuoco)
    *TBD*: motorizzazione a 3 vie (pan/tilt/fuoco)[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]PC LED 700W, 13°-54°, CRI 95, DMX
    PC HY LED 700 CW DMX
    PC HY LED 700 WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]PC LED 700W, 13°-54°, CRI 95, DMX
    PC HY LED 700 TW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL
    +
    Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]PC LED 700W, 13°-54°, CRI 95, DMX
    PC HY LED 700 8C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC HY 700: telaio colori
    PL 4 HY 700: paraluce rotante a 4 alette
    *TBD*: comando a palo a 3 vie (pan/tilt/fuoco)
    *TBD*: motorizzazione a 3 vie (pan/tilt/fuoco)[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Sagomatore LED 700W, 8°-25°(ZS)/20°-40°(ZW), CRI 95, DMX
    PR LED 700 ZS/ZW CW DMX
    PR LED 700 ZS/ZW WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Sagomatore LED 700W, 8°-25°(ZS)/20°-40°(ZW), CRI 95, DMX
    PR LED 700 ZS/ZW TW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL
    +
    Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Sagomatore LED 700W, 8°-25°(ZS)/20°-40°(ZW), DMX
    PR LED 700 ZS/ZW 8C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC HY 700: telaio colori
    DIA HY 700: diaframma iris
    PGB HY 700: porta gobos tipo B
    *TBD*: comando a palo a 2 vie (pan/tilt)
    *TBD*: motorizzazione a 2 vie (pan/tilt)[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Seguipersona LED 700W, 07°-14°, CRI 95, DMX
    FS LED 700 CW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    PGB HY 700: porta gobos tipo B
    BS: cavalletto con gambe regolabili
    RF: ruote per cavalletto[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 300W, 09°-45°, CRI 95, DMX
    FN HY LED 300 CW DMX
    FN HY LED 300 WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 300W, 09°-45°, CRI 95, DMX
    FN HY LED 300 TW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 300W, 12°-45°, DMX
    FN HY LED 300 6C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC S25: telaio colori
    PL 4 U25: paraluce rotante a 4 alette
    PO/3 HY: comando a palo a 3 vie (pan/tilt/fuoco)
    ARC STAGE/3: motorizzazione a 3 vie (pan/tilt/fuoco)[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]PC LED 300W, 06°-45°, CRI 95, DMX
    PC HY LED 300 CW DMX
    PC HY LED 300 WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]PC LED 300W, 06°-45°, CRI 95, DMX
    PC HY LED 300 TW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]PC LED 300W, 08°-45°, DMX
    PC HY LED 300 6C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC S25: telaio colori
    PL 4 U25: paraluce rotante a 4 alette
    PO/3 HY: comando a palo a 3 vie (pan/tilt/fuoco)
    ARC STAGE/3: motorizzazione a 3 vie (pan/tilt/fuoco)[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Sagomatore LED 300W, 15°-30°(ZS)/25°-50°(ZW), CRI 95, DMX
    PR HY LED 300 ZS/ZW CW DMX
    PR HY LED 300 ZS/ZW WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Sagomatore LED 300W, 15°-30°(ZS)/25°-50°(ZW), CRI 95, DMX
    PR HY LED 300 ZS/ZW TW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Sagomatore LED 300W, 15°-30°(ZS)/25°-50°(ZW), DMX
    PR HY LED 300 ZS/ZW 6C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC EU185: telaio colori
    DIA HY: diaframma iris
    PGM HY: porta gobos tipo B
    PO/2 HY: comando a palo a 2 vie (pan/tilt)
    ARC STAGE/2: motorizzazione a 2 vie (pan/tilt)[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Seguipersona LED 300W, 7°-14°, CRI 95, DMX
    FS HY LED 300 CW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    PGB HY 300: porta gobos tipo B
    BS: cavalletto con gambe regolabili
    RF: ruote per cavalletto[/vc_column_text][/vc_column][/vc_row]

  • [vc_row][vc_column width="1/4"][vc_btn title="Bianco" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 200W, 14°-81°, CRI 95, DMX
    FN HY LED 200 CW DMX
    FN HY LED 200 NW DMX
    FN HY LED 200 WW DMX
    [/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="Bianco Dinamico" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 200W, 13°-50°, CRI 95, DMX
    FN HY LED 200 TW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBW" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 200W, 13°-50°, DMX
    FN HY LED 200 RGBW DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width="1/4"][vc_btn title="RGBACL" style="custom" custom_background="#3d4459" custom_text="#ffffff" size="xs" align="center" button_block="true"][/vc_column][vc_column width="3/4"][vc_column_text]Fresnel LED 200W, 13°-50°, DMX
    FN HY LED 200 6C DMX[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Accessori:
    TC EU185: telaio colori
    PL 4 EU185: paraluce rotante a 4 alette
    PO/3 HY: comando a palo a 3 vie (pan/tilt/fuoco)
    ARC STAGE/3: motorizzazione a 3 vie (pan/tilt/fuoco)[/vc_column_text][/vc_column][/vc_row]
